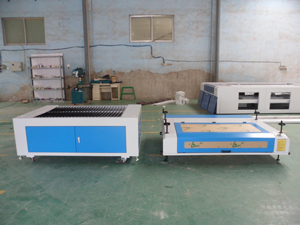

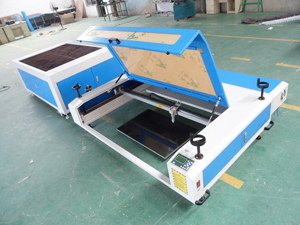

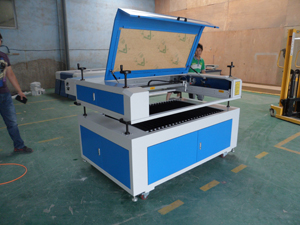

● Separate design,can only buy the upper part.
● Granite headstone engraver machines
● Singapore imported lens and mirrors.High
transmittance, good focusing, reflecting effect.
●. High accuracy stepper motors and
drivers. Belt transmission
●. Aluminium flat table
APPLICATIONS:
●Especially for granite and stone. Of course
it also can engrave or cut non-metal material,such as acrylic, wood, cloth,
leather, MDF, bamboo, rubber, glass, crystal,and so on
|
Mode
|
S-1060
|
|
Travelling size
|
1000*600mm
|
|
Laser type:
|
Sealed CO2 laser tube, wavelength:
10.64μm
|
|
Laser power:
|
80W/100W/150W/180W
|
|
Cooling mode:
|
Circulating water cooling
|
|
Laser power control:
|
0-100% software control
|
|
Control system:
|
DSP offline control system
|
|
Max engraving speed:
|
60000mm/min
|
|
Repetition accuracy:
|
0.01mm
|
|
Min. letter:
|
Chinese: 1.5mm; English: 1mm
|
|
File formats:
|
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las,
*doc
|
|
Working voltage:
|
110V/220V,50~60Hz
|
|
Packing
|
1620*1280*1190MM
|
|
Weight
|
230kg
|
Machine Features
