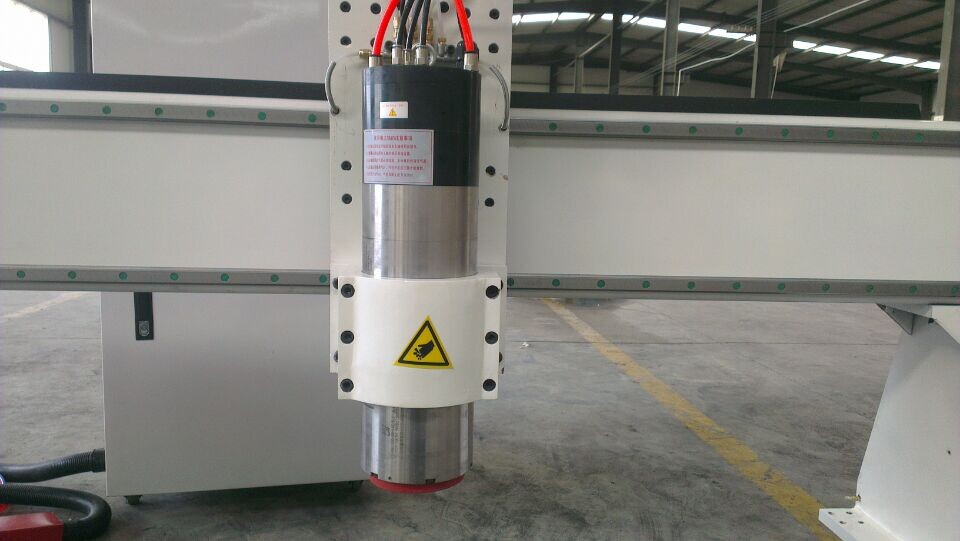

●5.5KW Chinese ATC water-cooled spindle, Change tools automatically.
●Thick
steel tube stucture after special treatment,well welded, no
distortion for whole structure, high precision ,and long life time.
●DSP-Off line control system
●Software:CAD/CAM
designing software such as Original type3, Artcam,
●Adopt high
speed Panasonic SERVO motor .
APPLICATIONS
● Furniture: ideally suitable for processing cabinet door, wooden door,
solid wood furniture, panel wood furniture, windows, tables and chairs,
etc.
● Other wooden products: stereo box, computer desk, musical instruments,
etc.
● Decoration: acrylic, PVC, density board, artificial stone, organic
glass, soft metals like aluminum and copper, etc.
|
Model
|
S-1325D
|
S-2030D
|
|
Travelling size
|
1300*2500*200mm
|
2000*2000*300mm
|
|
Table size
|
1360*3040mm
|
2060*3600mm
|
|
Transmission
|
X/Y rack and pinion drive, Z
ball screw drive
|
|
Table structure
|
T-slot vacuum
|
|
Spindle power
|
5.5kw
|
|
Spindle speed
|
18000 r/min
|
|
Travelling speed
|
60m/min
|
|
Working speed
|
20m/min
|
|
Tool magazine
|
Without
|
|
Tool slots
|
Without
|
|
Driving system
|
Panasonic
|
|
Voltage
|
AC380/3PH/50HZ
|
|
Controller
|
Syntec
|
|
|
|
|
Packing
|
3.7*2.2*2M
|
4.2*2.2*1.7M
|
|
Weight
|
1800kg
|
2100kg
|

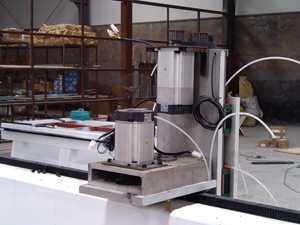

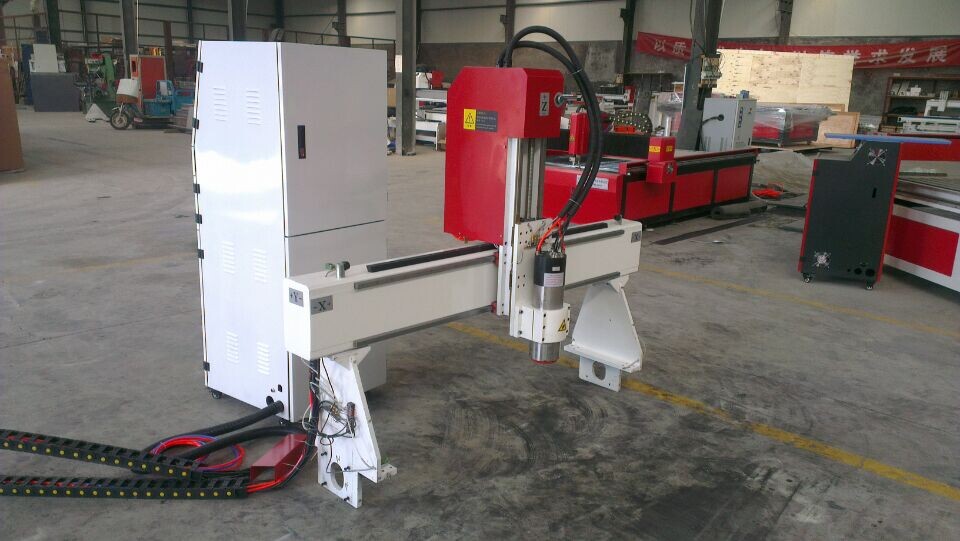

Ganty and Spindle

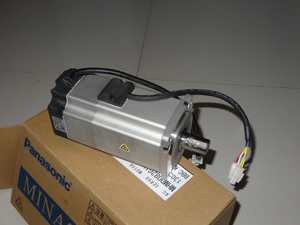

Panasonic sevor motor

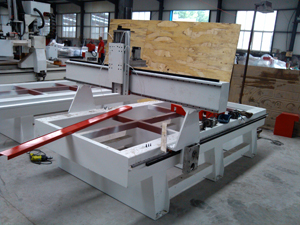

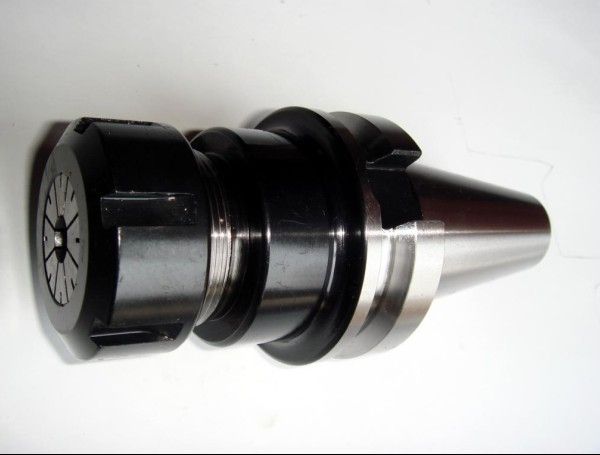

Frame and Collector Chuck(BT-30)

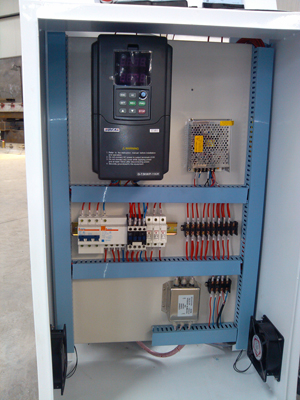

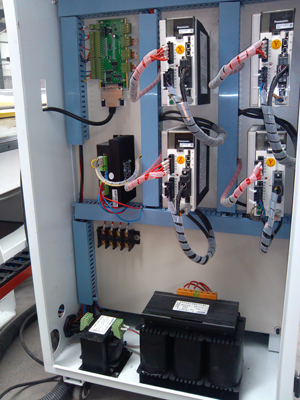

Control cabinet
