1.Industrialized welded machine structure,
milled by high accuracy planning machine, anealing treatment is made
after, strong and stable machine structure can be assured during long
time operating.
2.Adopt Taiwan Linear way.
3.Adopt Japan servo motor ,the torque force
is stronger , the working speed more faster and stable automatically –
tracing smoking extraction system, energy-saving and perfect smoke
extraction effect.
4.Configured with USA laser cutting
head
5.Professional laser CNC control system,
computer operation, more simple operation
6.Compatible with a variety of
software, can design all kinds of graphics or text instant cutting, simple
operation, flexible, convenient with intelligent discharging function,
material utilization rate is higher
Parameter
|
Model
|
S--500W
|
|
Working Area
|
1300*2500мм
|
|
Laser
|
Fiber laser
|
|
Laser Power
|
500вт (10-100%)
|
|
Laser Wavelength
|
1070Nm
|
|
Working Speed
|
12 м/min
|
|
Max speed
|
60 м/min
|
|
Laser power injection
|
2,5 kw
|
|
X Y position accuracy
|
±0,015мм
|
|
X Y Reposition
accuracy
|
±0,015мм
|
|
Min. cutting line width
|
0,02мм
|
|
Total power
|
6-10 kw
|
|
Max cutting thickness
|
5 мм
|
|
Working Voltage
|
380 V± 10% / 50Hz
|
|
Auxiliary gas
|
N2/ O2
|
|
Motor
|
Japan sevor motor
|
|
Material
|
stainless steel, carbon steel , titanium
sheet , and so on
|
|
Packing size
|
4х2,28х1,5 м
|
|
Weight
|
3500 kg
|

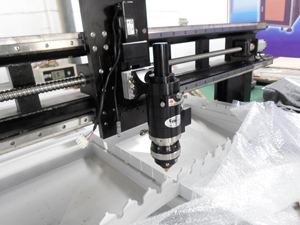

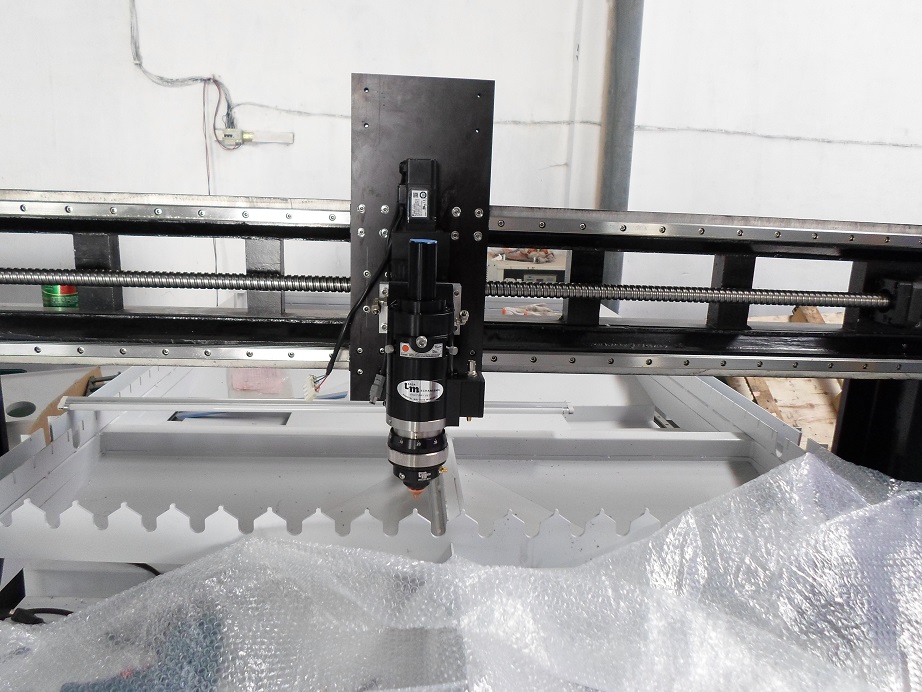

USA Laser Cutting Head

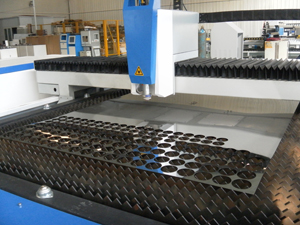

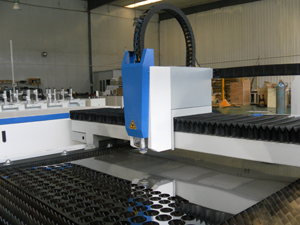

Working Table

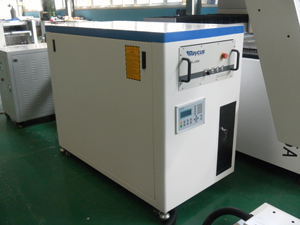

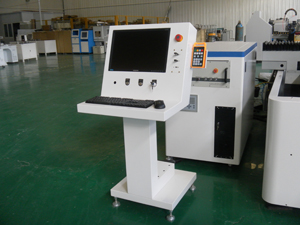

Fiber laser and Control computer
