●Synrad Brand 200W CO2 laser from US,
able to engrave and cut most non-metal materials.
●Water cooling system (Sunrise brand
water chiller), automatically controls the water temperature, cools and
protects the laser tube.
●.Ball screws transmission driven by Japan Panasonic servo motors(X Y axis),
greatly increased the machine cutting precision.
●If cut steel, oxygen is necessary.
APPLICATIONS:
Thin steel, acrylic, wood, cloth, leather, MDF, plywood, bamboo,
rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
|
Model
|
S-1465
|
|
Travelling size
|
1400*650mm
|
|
Laser type:
|
Synrad Brand 200W Co2 RF From US
|
|
Laser power:
|
200W
|
|
Cooling mode:
|
Circulating water cooling
|
|
Max cutting speed
|
60000mm/min
|
|
Min. letter:
|
Chinese: 1.5mm; English: 1mm
|
|
File formats:
|
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las,
*doc
|
|
Repetition accuracy:
|
0.01mm
|
|
Working voltage:
|
110V/220V,50~60Hz
|
|
|
|
|
|
|
|
Packing
|
2030*1600*1300MM
|
|
Weight
|
800kg
|

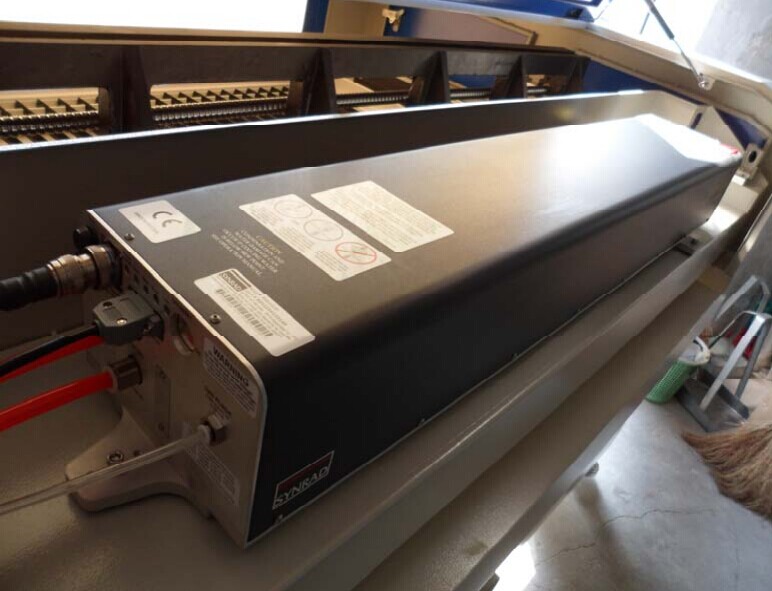

Laser tube(Synrad Form US)

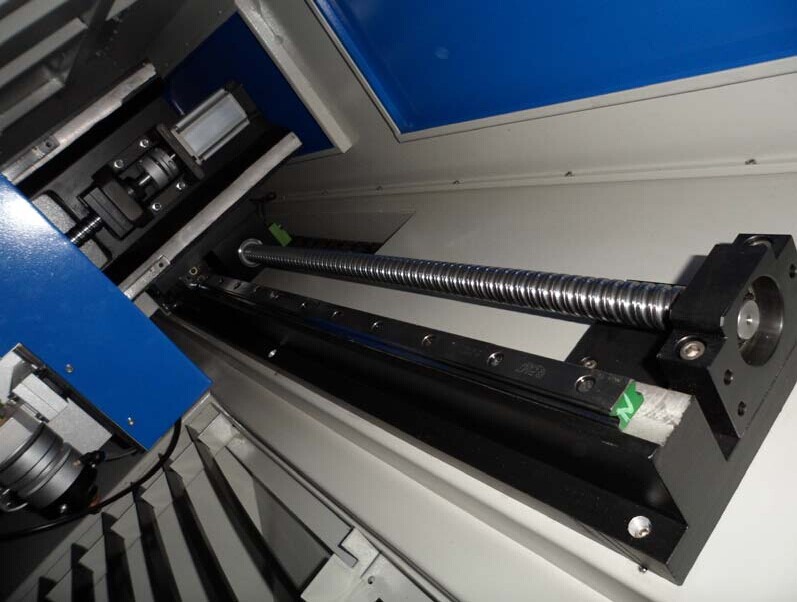

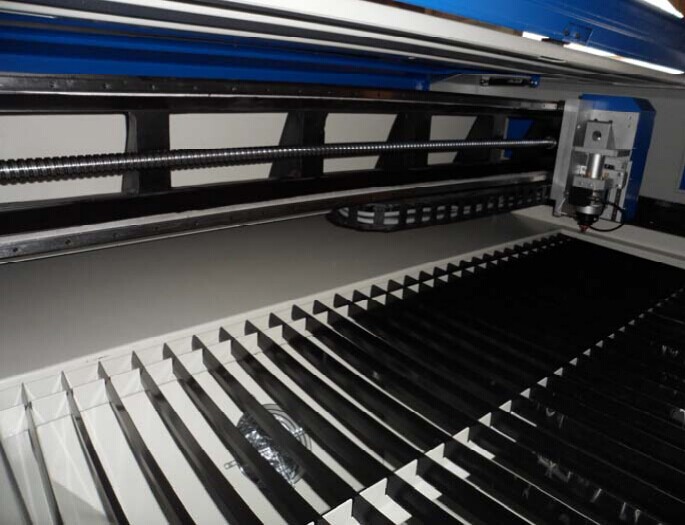

Working table and Ballscrew for X Y axis

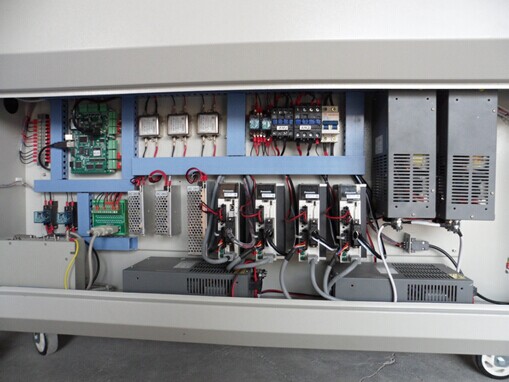

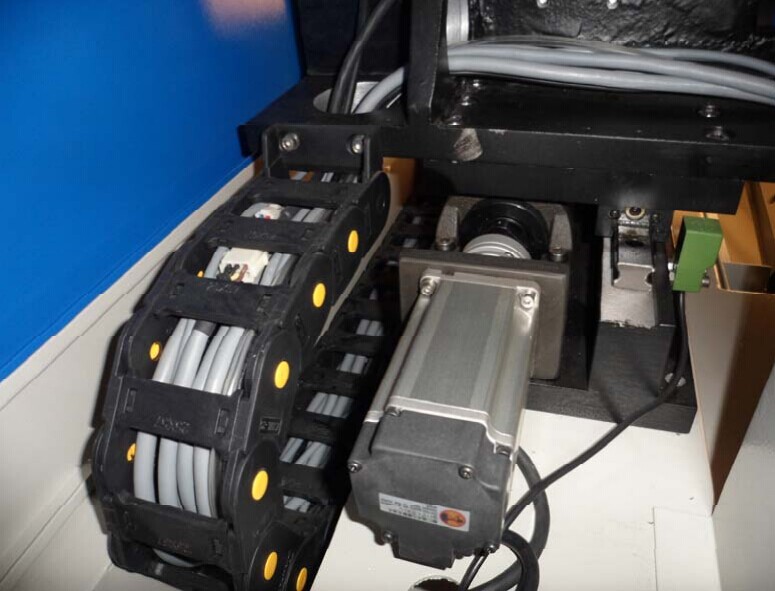

Panasonic sevro motor and Electronic Components
