● 260W CO2 laser tube
● Singapore imported lens and mirrors.High
transmittance, good focusing, reflecting effect.

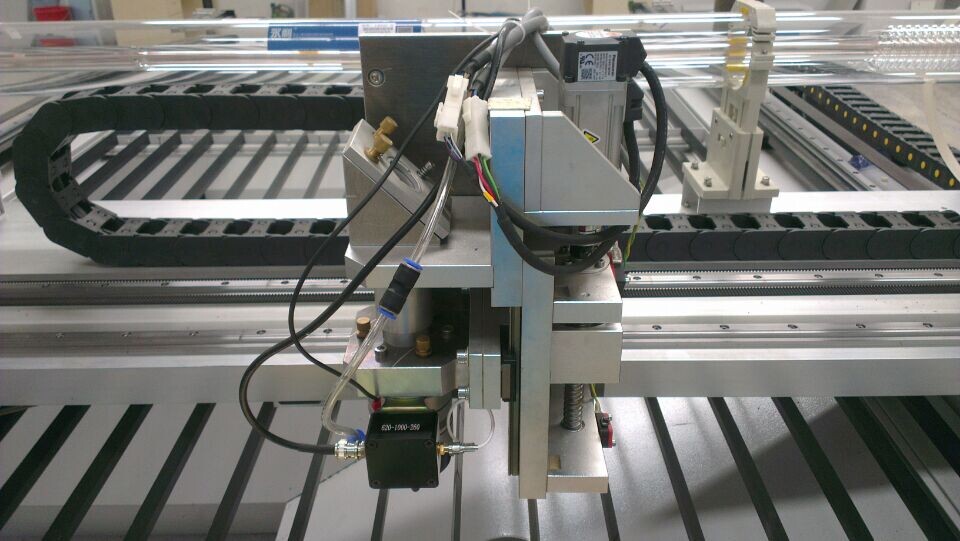

●High accuracy sevor motor. Ballscrew
● Air pump, protects the material being
cut from fire and helps to get better effect.If cut steel, oxygen is necessary
APPLICATIONS:
Specially for the cutting of metal and nonmetal materials
such as thin steel, acrylic, wood, cloth, leather, MDF, plywood, bamboo,
rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
Cutting thickness:3mm thin steel and 30mm
acrylic and MDF
|
Model
|
S-1325
|
|
Travelling
size
|
1300*2500mm
|
|
Laser
type:
|
Sealed
CO2 laser tube, wavelength: 10.64μm
|
|
Laser
power:
|
260W
|
|
Cooling
mode:
|
Circulating
water cooling
|
|
Max
cutting speed
|
60000mm/min
|
|
Min.
letter:
|
Chinese:
1.5mm; English: 1mm
|
|
File
formats:
|
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las,
*doc
|
|
Repetition
accuracy:
|
0.01mm
|
|
Working
voltage:
|
110V/220V,50~60Hz
|
|
Packing
|
3300*2100*1420MM
|
|
Weight
|
1100kg
|

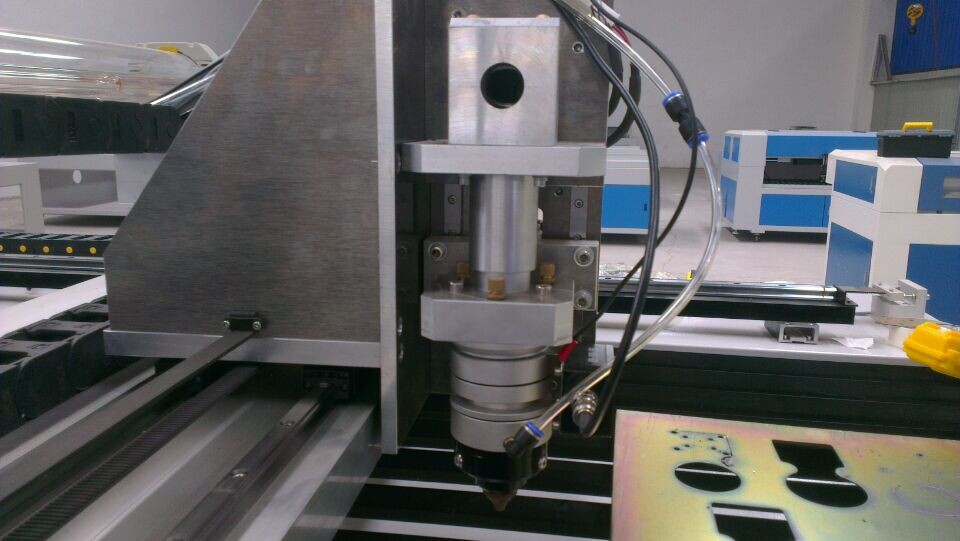

Automatic Height adjust laser head(Brand:Lasermech from USA)

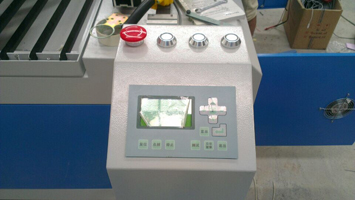

DSP off-line Control System
